What Is a Pitless Adapter?

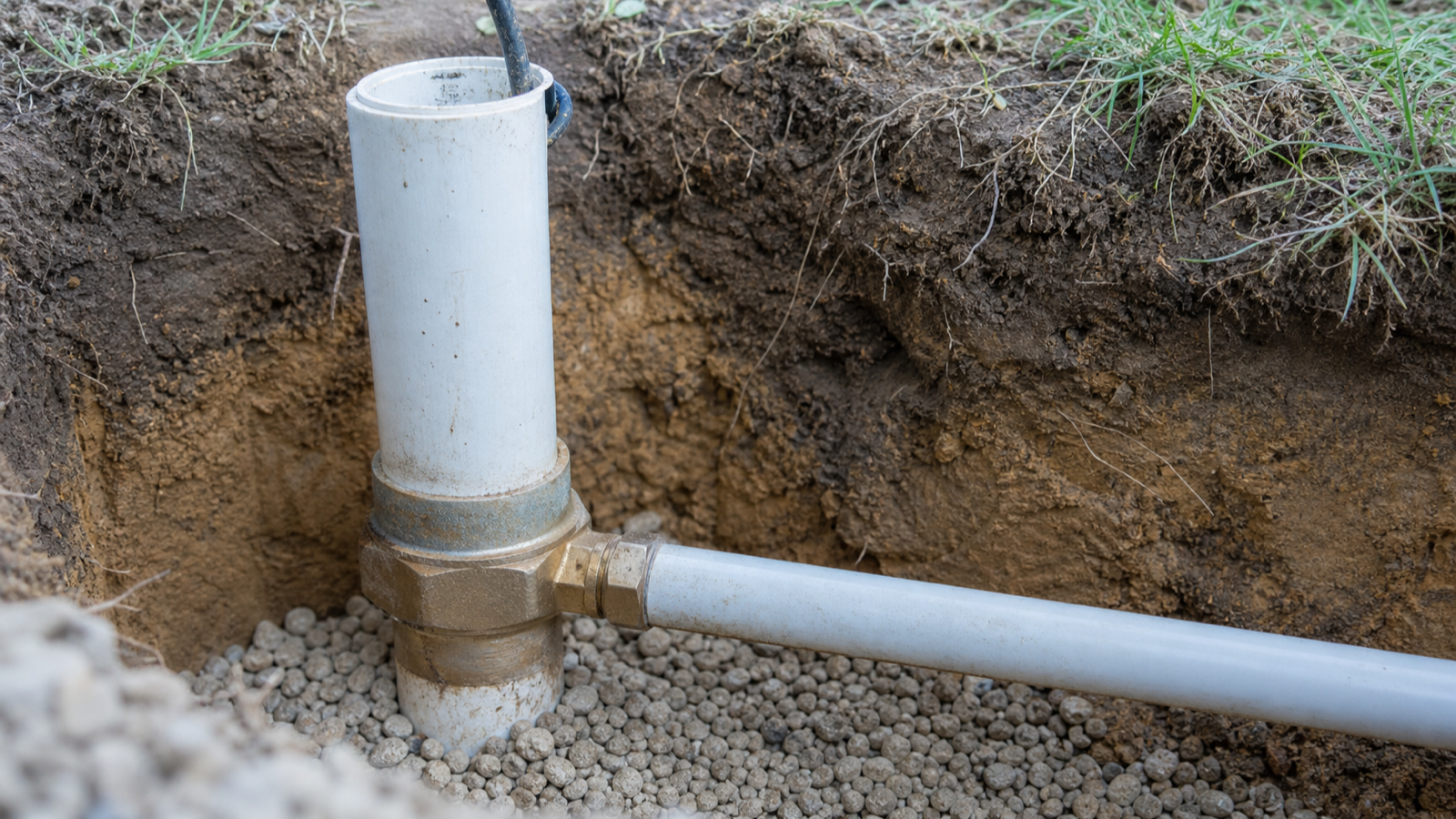

A pitless adapter is a specialized fitting that connects your well's vertical casing to the horizontal water line that runs to your house, all while staying safely below ground. It solves an old and important problem: how to route water out of a well without exposing the connection to freezing temperatures or surface contamination.
It is a small part that homeowners rarely see, but it does a big job. Understanding it explains how water leaves your well underground and why the connection is buried rather than sitting up at the wellhead.
The problem it solves
Water has to travel from the well casing to your home through a buried supply line. If that connection were made above ground or in a shallow pit, it would be exposed to freezing in winter and to surface water and debris that could contaminate the well. Older systems sometimes used a below-ground well pit for the connection, but pits could flood and became a contamination risk.
The pitless adapter replaces the pit entirely. It makes the connection through the side of the well casing, below the frost line, so the water line stays underground and protected. This is why it earns the name pitless: it lets the connection happen without a well pit.
How a pitless adapter works
The adapter comes in two mating parts. One part is sealed into a hole in the side of the casing, and the other connects to the drop pipe and pump assembly inside the well. The two parts slide together with a watertight seal, allowing water coming up from the pump to divert horizontally out to the supply line.
Cleverly, the design also allows the pump and drop pipe to be lifted straight out of the well for service. A provider can disconnect the inner half of the adapter and pull the whole pump assembly up through the casing, then reseat it when the work is done. This makes servicing a submersible pump possible without digging up the yard.
Why it matters to your system
- It keeps the water line below the frost line, which helps protect your supply from freezing during Upper Cumberland winters.
- It maintains a sanitary seal at the casing, helping keep surface water, insects, and debris from entering the well through the connection.
- It eliminates the need for a flood-prone well pit, removing a common contamination and maintenance headache from older systems.
- It allows the pump and drop pipe to be removed and reinstalled for service without excavation, which simplifies future pump work.
- It provides a secure, watertight junction that keeps the pressurized water flowing cleanly from the well to the house.
When a pitless adapter needs attention
Because it is buried and built to last, a pitless adapter usually operates for many years without notice. Trouble can appear as a leak at the connection, a drop in pressure, or signs of surface water reaching the well, though these symptoms can also come from other parts. Diagnosing the adapter means accessing the wellhead and, often, the casing below grade.
This work involves the well casing and the pump assembly and is not a homeowner task. A licensed provider can inspect the adapter, confirm whether it is leaking or worn, and service it safely. If you suspect a problem at your wellhead, a well inspection is a good first step.
Related Well Pump Services
Upper Cumberland Well Pump is an independent referral service that helps connect property owners with local water-well and pump-service providers. Upper Cumberland Well Pump does not directly perform regulated well drilling, pump installation, pump repair or water-treatment work unless expressly stated. Provider licensing, qualifications, insurance, availability, pricing, scheduling and service terms must be confirmed directly with the provider.
Well Pump System Components — Questions
Where is the pitless adapter located?
It is installed through the side of the well casing, below ground and below the frost line, where the buried horizontal water line meets the vertical casing. Because it is buried, it is not visible without excavation at the wellhead.
Can a pitless adapter leak?
Yes, though it is built to seal tightly for many years. A worn seal can allow water to leak or, more seriously, let surface water reach the well, so any suspected leak should be evaluated by a licensed provider.
Does the pitless adapter help with servicing the pump?
Yes. Its two-piece design lets a provider disconnect the inner half and lift the pump and drop pipe straight out of the casing, so a submersible pump can be serviced without digging up the buried water line.
